Bearing M6320 KOYO Original import

Product Details

Place of Origin:check with us
Brand Name:Bearing M6320 KOYO
Certification:Check with us
Model Number:M6320 KOYO

Payment Terms

Min.Order Quantity:One set
Price:contact with us
Packaging Details:Conventional shipping packaging
Delivery Time:Within 5 working days
Payment Terms:T/T
Supply Ability:337

Product Description

<!--StartFragment -->

solar cable is ozone-resistant according to BS EN 50396, UV resistant according to HD 605/A1, and is tested for durability according to EN 60216.

For installations where fire, smoke emissions and toxic fumes create a potential risk to life and equipment.

These 1.5kV D.C. cross-linked cables offer exceptional performances, easy installation and long-term reliability for solar plant.

They link photovoltaic panels for Utility-Scale solar plants or rooftops, and also connect them to the array box (if existing), or potentially to the inverter.

Bearing M6320

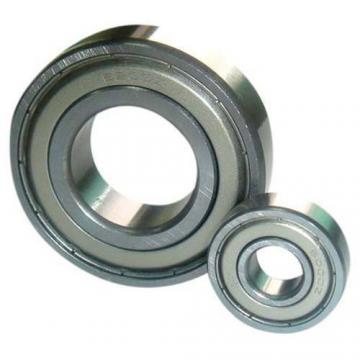

Deep groove ball bearings M6320

Bearing number : M6320

Size mm : 100x215x47

Brand : KOYO

Bore Diameter mm : 100

Outer Diameter mm : 215

Width mm : 47

Bearing dimensions and specification in brand catalogue :

d - 100 mm

D - 215 mm

B - 47 mm

C - 47 mm

r min. - 3 mm

da min. - 113 mm

da max - 130 mm

Da max. - 202 mm

ra max. - 2.5 mm

Weight - 7.26 Kg

Basic dynamic load rating C - 192 kN

Basic static load rating C0 - 212 kN

Grease Lubrication Speed - 3000 r/min

Oil Lubrication Speed - 3600 r/min

Calculation factor f0 - 13.2

Catalogue,Brandslist,,Bearing M6320 KOYO
